EMC Matertial

EMC

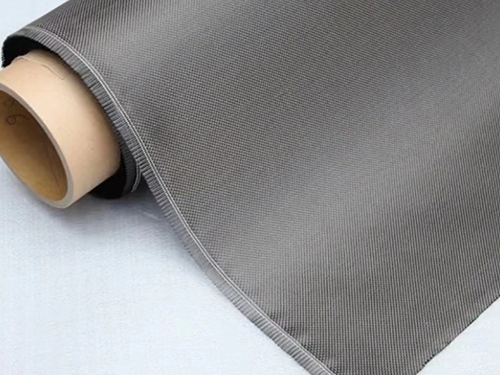

After coating with nickel, MANMU carbon fiber has been improved the electric conductivity and magnetic permeability. Compared with ordinary carbon fiber, the conductivity is increased by about 10 times, weight is reduced by 50~80%. By reasonable weave and distribution, network will be formed with closed electric conductivity, furtherly has the feature of EMC, successfully improve the mechanical properties and electric conductivity at the same time. So it can be widely applied to security protection equipment (camera, interphone), communication (telecommunication base station), electronic components (mobile phone, computer, electrical display material) and automobile (central control system and navigating system).

Item Test    standardUnit Classic    value
Mechanical propertiesTensile strengthISO11566MPa3000
Tensile modulusISO11566GPa310
Elongation at breakISO11566%0.95
Electrical propertiesResistivityQJ3074Ω.cm8.23×10-5
OthersBulk densityISO10119g/cm33.2
Linear densityISO11566g/km1630
TowISO11566ends12000
Monofilament diameter μm7.3
Coating thickness μm0.3
Nickel content %50
Cross-sectional area mm2/tow0.55
Twist  None
