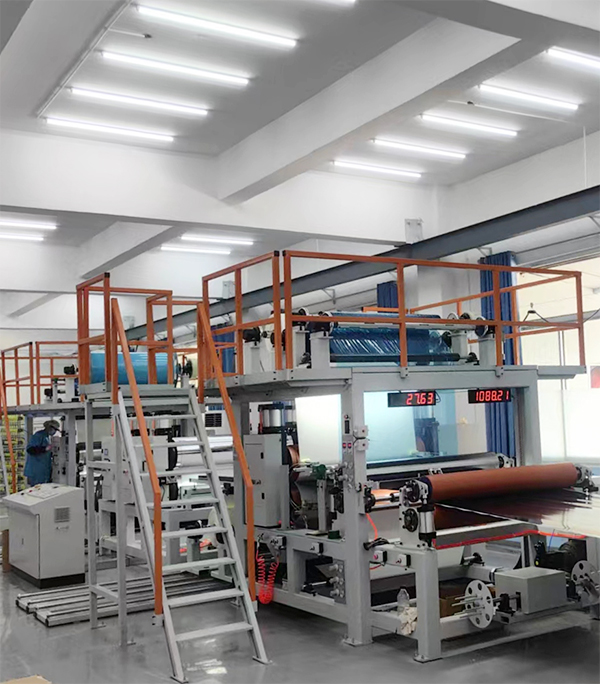

Prepreg production line is a series of automatic equipment which processing raw material carbon fiber to finished products. It is equipped with pasting machine, infrared ray surveymeter, creel, yarn spreading system, rubber coated paper roll loading, roll loading paper go, compound impregnation roller, heat oil transfer system, hot plate, cooling control system, paper loading recycle device, carry-over pinch roll, tectorial membrane roll, cutting, finished roll. It is widely applied in making molds of aero space, wind power blades, automotive industry and compound materials.

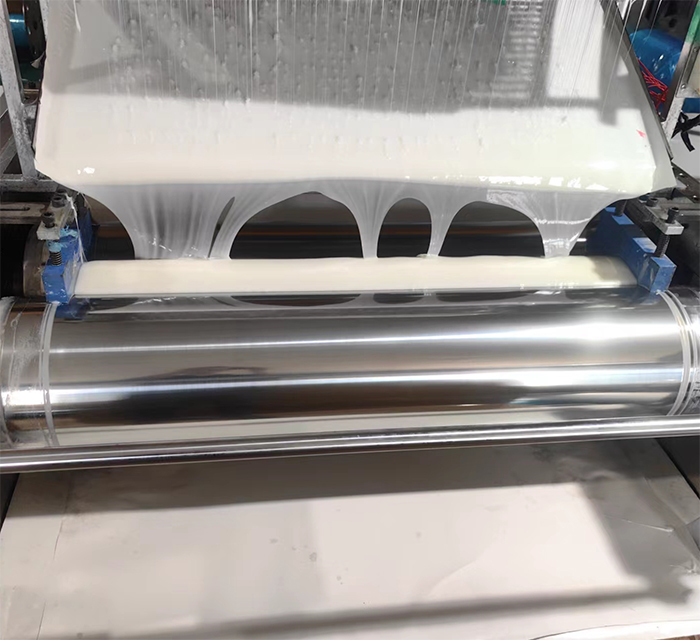

| Pasting machine | ||
| pasting weight/㎡ | speed m/min | ±tolerance |
| 3g-10g | 10m-20m | 1 |
| 10g-20g | 10m-25m | 1 |
| 20g-30g | 10m-30m | 1 |
| 40g-50g | 10m-30m | 1.5 |
| 50g-60g | 10m-30m | 2 |
| 60g-80g | 10m-30m | 2.5 |
| 80g-200g | 10m-30m | 3.5 |
Pasting technology parameter and configuratioin
- Release paper unwinding, fully automatic correction, fully automatic tension, paper receiving table
- Pasting range: 3g-200g/m²
- Speed:30m/min
- Red infrared: YANGTAO technology, online repeat auto check
- Pasting steel cylinder diameter 280mm, cylinder total runout ≤0.002mm. roller surface roughness Ra ≤0.2, roller surface hardness, HRC: 60±2º, roller surface temperature difference: ±1°C
- Gap adjustment: ball screw equipped with gearbox handwheel adjustment
- Pasting paper cooling: aluminum cooling plate, recycle water cooling
- PE film loading: 2 groups of PE film loading, cover PE shifting handwheel adjustment
- Pasting paper winding: servo motor constant torque winding
- Heating: mould temperature heat transfer oil recycle heating
| Compounding machine | ||
| model | fiber content | speed |
| 01500＃ | 15g | 1m±0.5 |
| 02000＃ | 22g | 2m±0.5 |
| 03000＃ | 30g | 2.5m±1 |
| 05400＃ | 54g | 5m±1 |
| 07500＃ | 75g | 8m±2 |
| 10000＃ | 100g | 10m±2 |
| 12500＃ | 125g | 12m±2 |
| 15000＃ | 150g | 12m±2 |
Compound machine parameter
- Creel: 300 pcs of spindles, yarn board is equipped on each spindle
- Exhibition yarn: 10 pcs of spindles to spread, vibration up and down, left and right
- Lifting method of yarn roller: hand operated screw lift
- Up and down pasting paper winding: auto shifting, auto tension
- 3 groups of Paste roller, one group is 345mm diameter as pulling, 200ml diameter as cover PE and paper exchange, 200mm diameter as pulling
- Steel roller: 4 groups 8 pcs of steel roller , diameter: 345mm, roller total runout≤0.002mm
- Roller surface roughness Ra≤0.2, roller surface hardness HRC:60±2°C roller surface temperature difference: ±1°C
-Steel roller transmission: servo motor equipped with gear reducer, each group will be transfer separately
- Heat plate: TFS, heat transfer oil recycle heating
- Gap adjustment: tapered iron, roller pin, worm reducer with step motor, display gad adjusting value on the screen
- Lifting way: linear slider, cylinder lifting
- Cooling: aluminum cooling plate, recycle water cooling
- Up recycle paper: servo motor constant torque winding
- Down recycle paper: servo motro constant torque winding
- Residence adhesive cleaning: pneumatic stretching pasting
- Down paper exchange: auto shifting, auto tension
- Pulling pasting roller: with 3 groups of roller 345mm diameter as pulling, 200ml diameter as cover PE and paper exchange, 200mm diameter as pulling
- PE film loading: 2 groups of PE film loading roller, cover PE shifting handwheel adjustement
- Edge cutting: pneumatic cutting knife, waste edge will be winded by winding
- Meter counter: 2 big screen to record step by step
- Finished products winding: magnetic particle clutch winding, adopts pneumatic stretching tension
